NC917L Standard Call Push with Protruding Button, No Reset, No Remote

Product Description

  • A standard call point c/w protruding button for use with C-TEC's 800 Series Call System.
  • Red reassurance LED confirms a call has been made.
  • Requires a separate reset point for cancelling calls.
  • Mounts on a standard UK 25mm single gang flush or surface back box.
Quiescent current 0mA.
Alarm current Determined by the type of control equipment and number / type of field devices connected to the system.
Indicators Red Reassurance LED (lit constant for Standard calls).
Controls Red protruding call button (generates a Standard call when pressed). An additional 800 Series device with a reset function is required to reset this device.
Connections SIG (Signal); -Ve (Negative).
Onboard Sounder No.
Onboard Infrared Receiver No.
Product dimensions (mm) 87 W x 87 H x 32 D mm. Mounts on a UK 25mm single gang back box.
Construction & finish Plastic.
IP Rating IP41.
Weight 62g.
Operating conditions/temperature -5ºC to +40ºC. Max. relative humidity 95% non-condensing.



Specifications

MPN
NC917L
Brand
C-TEC
Product Code
NC917L

Customer reviews

No reviews left yet
Write A Review

Delivery & Returns

Free UK Delivery over £250

Returns Policy: The company operates a 14 day returns policy, products returned in an unopened / undamaged condition will be refunded.

Customer Reviews

NC917L Standard Call Push with Protruding Button, No Reset, No Remote

Product Code NC917L

Requires a separate reset point for cancelling calls.

Recently viewed products

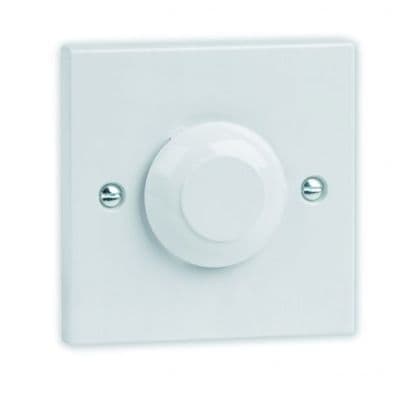

QT688/2 Hi-Output Addressable Sounder
