Description

HCP-EM

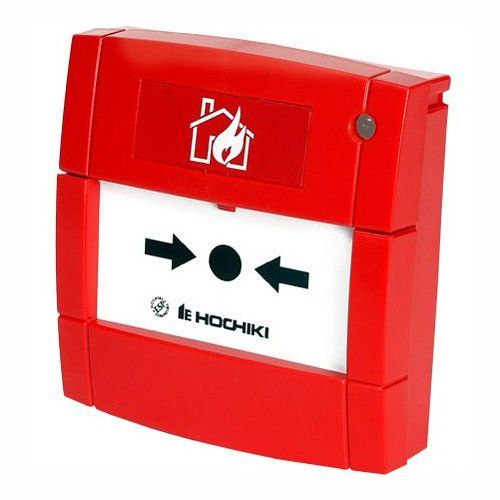

Marine Approved Addressable Call Point Red

Model HCP-EM is a Marine Approved Manual Call Point, which is fully compatible with Hochiki’s ESP analogue addressable protocol.

The HCP-EM incorporates a red LED mounted on the front cover, which can be selected as pulsing/non-pulsing* for communications polling and is continuously lit when the unit is operated. The HCP-EM is operated by pressing the EN54 compliant non-frangible (plastic) element and, once operated, produces a high level ESP interrupt, allowing the control panel to respond very quickly. A built in test function initiated by the control panel ensures the integrity of the device at all times and the device can be tested by insertion of a test key in the underside of the unit. Two terminal blocks are provided for easy connection to the loop wiring.

The unit is addressed using the TCH-B100 Hand Held Programmer for quick and reliable addressing.  The unit can be flush mounted as supplied.  For surface fixing a suitable back box such as the SR MOUNTING BOX is required (sold separately).  An optional glass element is also available.

*Control panel compatibility required.

Details

• Model: HCP-EM
• Shipping Weight: 400g
