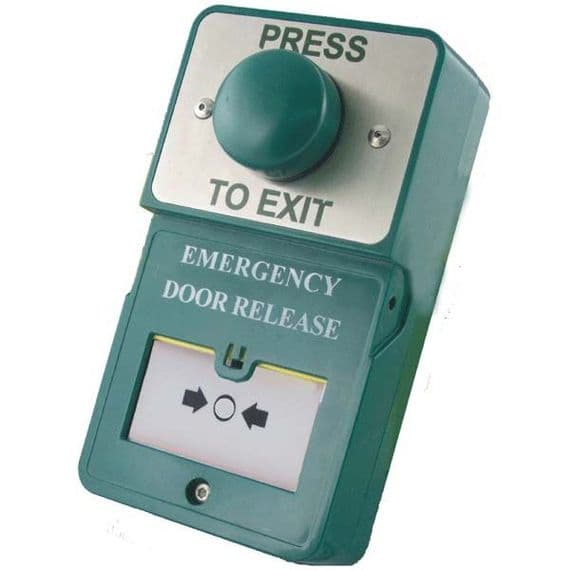

This unit features a resettable door release unit and a large, dome shaped push to exit button. When activated, the push plate will move backwards and a yellow tab will drop down to prevent an unauthorised reset.

This will be followed by an indicating LED or warning sound which will stop once deactivated using the key provided. The device has a triple pole contact and is housed within a high impact green plastic box.

This unit includes one reset key and is ideally suited for public areas due to its neutral colour, easy to clean surface and large exit button.

Features

• Stainless steel with green dome button
• Combined emergency door release button (resettable)
• Buzzer & LED indication
• Wear resistant legend
• Security screws (allen key type)

Technical Data

• 12-24V DC
• Triple pole as standard

• Dimensions
• 160 x 90 x 42 (hwd mm)
